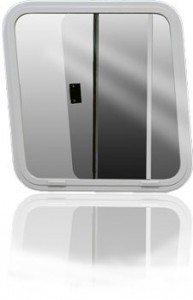

Heavy Duty Sliding Boat Windows – Series 1260
Boat Windows For Use In:
- Commercial Fishing
- Offshore Platforms
- Pilot Houses
- Crane Cabins
The Series 1260 is our heavy duty version of boat sliding windows. These frames can be bent with a 3-0” radius corner or mitered corners to virtually any size or shape. We also manufacture welded mitered corners to any dimensions you require. Your walls must be flat to accept installation as these frames will not adapt to curved surfaces. Corner radius and flatness should be checked before continuing on with quotation. If you do not have the correct radii, you will have to be able to modify your rough cut openings to suit. All of our frame extrusions start from a marine-grade 6063 anodized aluminum alloy and can be upgraded to one of four select powder coat colors for a durable weather resistant dual coated finish.
Our heavy duty boat sliding windows are glazed with 3/8″ (9.5mm) solid tempered safety glass available in a variety of embedded tints. Our sliding windows offer the choice of front-to-rear (forward open with aft fixed), rear-to-front (forward fixed with aft open) or double-sliding glass configurations. For window requirements that are taller than wide, we also offer this window as a drop-slider (top open with bottom fixed). Just like our Standard Duty Sliding Boat Windows – Series 1200, a unique high-back slider track design and ample face slots give the Series 1260 quick water evacuation and excellent slide capability in the most severe conditions.
Window replacement installation is quick and easy. You simply push the window into the rough opening and fasten the interior clamp ring to the inside of the window frame for a water-tight exterior and factory finished interior. For boats where this installation type may present problems, we can also eliminate the interior trim ring and drill and countersink holes in the exterior flange for easier exterior fastened installation.
- Cross Sectional View
- Marine Series Window Latch
- Radius Corner w/ Trim Ring Detail
- Mitered Corner
(Click link for Window Replacement Parts.)
Specifications:
- Shapes: Rectangle, Parallelogram, Single Slope, T-Sliders, and others
- Mounting: Trim Ring
- Wall Thickness: 1/4″ to 2-1/2″
- Radius: 3-0″ or mitered corners available
- Frame Depth: 1-1/2″
- Glass: 3/8” tempered glass
- Glass Tint: Clear & Solar Grey
- Frame: Anodized Clear (Silver), or a selection of powder coat colors.
- Standard Amenities: Sliding removable screen available on outside slide configuration only
Specification Sheet Printable Version Installation Guide Printable Version
